LPV130 axial piston hydraulic oil pumps with high working pressure
LPV130 hydraulic oil pumps basic information:
Hydraulic oil pumps are piston or piston reciprocating direction parallel to the cylinder center axis of the Piston pump. The hydraulic oil pump uses the volume change produced by the reciprocating movement of the plunger in the plunger hole parallel to the drive shaft to work. Because the plunger and plunger hole are round parts, high precision can be achieved, so the volume efficiency is high.
Axial piston pumps main features:
Optimized design: Compactness appearance make operating your machine as simple as possible,
still providing best quality at highest standards.
Clean and flexibility: The lightweight, compact design. Precise control and reliable quality and performance.
Wide range of displacements: Offering a range of pumps with 30-130 cm² per round.
High pressure capability: Working with 420 bar transient pressure.
Hydraulic oil pumps technical specifications:
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | | Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 | | Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 | | Rated speed | r/min | 2500 | | Min continuous working speed | r/min | 500 | | Pressure | Rated working pressure | Mpa | 35 | | Max working pressure (transient) | Mpa | 42 | | Continuous working pressure | Mpa | 30 | | Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | | Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 | | Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | | Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 | | Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | | Temperature | Allowable shell temperature | ℃ | 80 | | Max working temperature of oil tank | ℃ | 70 | | weight | LPV series hydraulic pump
hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 | LPV series hydraulic motor
hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Advantages of hydraulic oil pumps:
Factory direct sale, competitive prices.
We are factory with quick delivery.
Capability to handle high range of pressure and flow.
Long time service life & high speed.
Easy to maintenance.
Easy to install.
Hydraulic oil pumps usage:
a. Hydraulic oil pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, construction machinery, mining and metallurgical machinery, and shipping building. It can play an important role.
b. Hydraulic oil pumps are used in oil exploration industry, petrochemical, pharmaceutical, atomic energy science, environmental science, process equipment, experimental equipment, and aviation industry etc.
Tags: axial piston pumps, hydraulic oil pumps, axial piston hydraulic oil pumps
Product Tags:
|
|

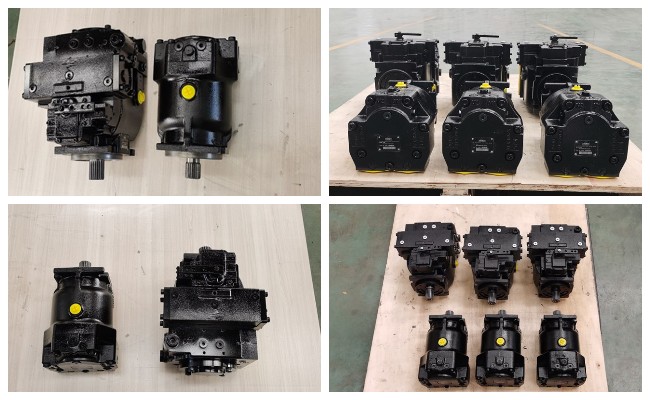

LPV130 Axial Piston Hydraulic Oil Pumps High Pressure Hydraulic Pump Images
|
