LPV110 series agricultural machinery Hydraulic transmission system smoother
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
The "Agricultural Machinery Hydraulic Motor Pump System" refers to an integrated system that utilizes hydraulic technology to power various functions and operations in agricultural machinery. It typically consists of a hydraulic motor, pump, valves, and hoses, working together to deliver fluid power to the machinery.
The hydraulic motor converts the pressurized fluid from the pump into mechanical energy, driving the movement or operation of agricultural equipment, such as tractors, harvesters, or irrigation systems. The pump, often a gear, piston, or vane type, generates the flow of pressurized fluid needed to power the motor. Valves control the flow and direction of the hydraulic fluid, regulating the motor's speed and power output. Hoses transmit the pressurized fluid between the components.
This system offers advantages in agricultural machinery, such as precise control, high torque output, smooth operation, and efficient power transmission. It allows farmers to optimize their equipment performance, increasing productivity and reducing the time and effort required for various agricultural tasks.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic Motor Pump System notices:
Perform regular maintenance: Inspect and maintain the hydraulic motor, pump, valves, hoses, and other components according to the manufacturer's recommendations. Replace worn or damaged parts as needed.
Monitor fluid levels: Check the hydraulic fluid levels regularly and top off as needed. Use the recommended fluid type and adhere to the manufacturer's guidelines for fluid replacement intervals.
Maintain cleanliness: Keep the hydraulic system clean to prevent contamination, which can cause premature wear or damage to components. Clean the area around the reservoir, filter, and connections before opening or servicing the system.
Check for leaks: Inspect hoses, fittings, and connections for signs of leaks. Repair or replace leaking components promptly to avoid loss of pressure and potential damage to the system.
Operate within limits: Do not exceed the system's rated pressure, flow, or temperature limits. Overloading the system can lead to component failure and may pose safety hazards.
Use caution with high pressure: Be aware that hydraulic systems operate under high pressure. Take necessary precautions to avoid injury from pressurized fluid or flying debris in the event of a component failure.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
Product Tags:
|
|

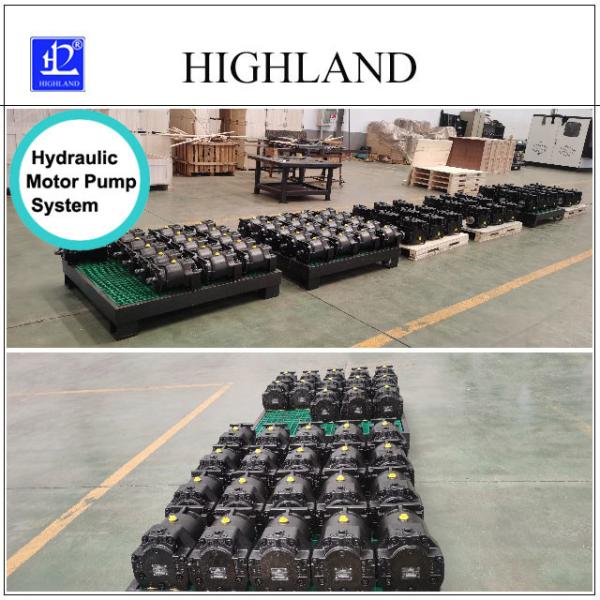

LPV110 Series Agricultural Machinery Hydraulic Transmission System Smoother Images
|
