Product Description:

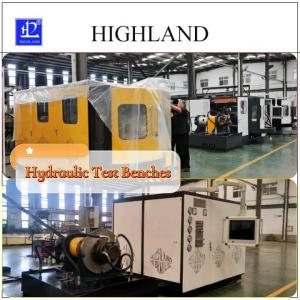

Hydraulic Test Benches are essential testing devices used in many industrial applications. Our Hydraulic Test Benches are manufactured by a professional Hydraulic Test Device Factory with the highest quality standards. With a pressure rating of 42 Mpa, our YST500 Hydraulic Test Bench is designed to test a wide range of Hydraulic Pumps and Motors.
The YST500 Hydraulic Test Bench offers complete detection data and is ideal for testing equipment used in ships. As one of the leading Hydraulic Test Bench Manufacturer, we ensure that our products meet the highest standards and satisfy customer needs.
Our Hydraulic Test Benches are the perfect testing solution for your industrial needs. With our testing solutions, you can enjoy the advantages of ease of use, accuracy, and reliability.
Features:
- Product Name: Hydraulic Test Benches
- Flow rate: 500 L/min
- Function: Testing Hydraulic Pumps And Motors
- Specification parameters: YST500 Hydraulic Test Bench
- Usage: Ship
- Name: Hydraulic Test Bench
- Customized Manufacturer of YST500 Hydraulic Test Bench
- Customization of Hydraulic Test Bench
Technical Parameters:
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Applications:
Highland’s YST 500 Hydraulic Test Bench is designed to test hydraulic pumps and motors. It is a must-have tool for industrial and automotive testing and maintenance. This test bench is highly integrated, allowing for simple operation. It has a power of 200 kW and can meet the needs of most industrial applications. It is certified with CE and each unit is subject to strict quality control.
The YST 500 Hydraulic Test Bench is manufactured in Dezhou, China and is available with minimum order quantity of one set. The price per set ranges from USD 28000 to 120000 with plastic film packaging. Delivery time is usually 30-60 working days from the date of payment. Payment terms are T/T and Western Union. The supplier can delivery up to 5 sets per month.
Highland is a renowned hydraulic test bench manufacturer and the YST500 Hydraulic Test Bench features a high degree of integration and simple operation. It is the ideal tool for industrial and automotive maintenance.
Customization:
HIGHLAND YST500 Simple Operation Hydraulic Test Bench
Brand Name: HIGHLAND
Model Number: YST 500
Place of Origin: China Dezhou
Certification: CE
Minimum Order Quantity: 1set
Price: USD28000-120000/set
Packaging Details: Plastic film packaging
Delivery Time: 30-60 working days
Payment Terms: T/T, Western Union
Supply Ability: 5 sets per month
Brand: HIGHLAND
Name: Hydraulic Test Bench
Pressure: 42 Mpa
Specification parameters: YST500 Hydraulic Test Bench
Flow rate: 500 L/min
YST500 Simple Operation Hydraulic Test Bench is an essential device for testing hydraulic systems. It is made of high quality materials, and its pressure reaches 42 Mpa. The flow rate is 500 L/min and the specification parameters is YST500. It is simple to operate and is provided by HIGHLAND, a reliable hydraulic device factory.
Packing and Shipping:
Our Hydraulic Test Benches are carefully packaged and shipped to ensure safe arrival to our customers. We use plastic film to protect the product during transit. All items are shipped via a reputable carrier and can be tracked to their destination.
FAQ:
- Q1: What is the Brand Name of your Hydraulic Test Benches?
- A1: Our Hydraulic Test Benches are branded as "HIGHLAND".
- Q2: What is the Model Number of your Hydraulic Test Benches?
- A2: Our Hydraulic Test Benches are Model Number YST 500.
- Q3: Where is the Place of Origin of your Hydraulic Test Benches?
- A3: Our Hydraulic Test Benches are manufactured in China Dezhou.
- Q4: What is the Certification of your Hydraulic Test Benches?
- A4: Our Hydraulic Test Benches are certified with CE.
- Q5: What is the Minimum Order Quantity of your Hydraulic Test Benches?
- A5: The Minimum Order Quantity of our Hydraulic Test Benches is 1 set.
