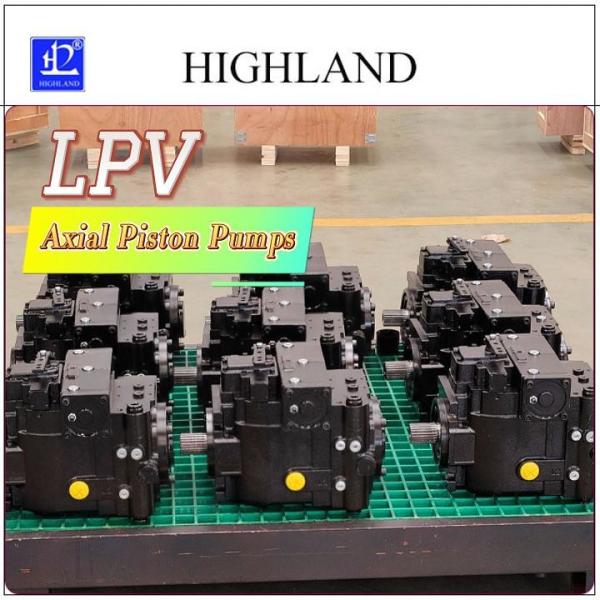

High Pressure Closed Loop Axial Piston Pump for Construction Machinery
Product Description:
High Quality Hydraulic System from We Highland
We Highland provide high quality, high-performance hydraulic system. Our axial hydraulic pump and hydraulic motor assembly have variable and quantitative features, available with Charge Pump and Valve Assembly. The control way of the hydraulic pumps and motors can be manual or hydraulic operated, so they can easily control the speed, direction and power of the output shaft of hydraulic motor.
Our variable displacement medium pressure axial piston pump offers maximum operating pressure of up to 42Mpa with quiet, efficient and compact features. Its unique design makes installation and replacement easier and more convenient. Additionally, we offer axial hydraulic motor and transmission for our customers with reliable performance.
Features:
- Maximize Performance, Efficiency and Profit with Axial Piston Pumps
- Axial Piston Pumps are specially designed for your applications. They are ideally suited to maximise efficiency and bring down the costs of running the overall hydraulic systems.
- The pumps have a compact appearance which makes operating possibe while still maintaining industry standard quality control. In addition, the lightweight design provides additional cleanliness and flexibility for its application.
- It has a wide range of displacement levels, from 30-130 cm² per round and a high pressure capability of 420 bar transient pressure. This ensures precise control and consistent performance.
Technical Parameters:
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | LPV series hydraulic pump
hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
LMF series hydraulic motor
hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
Axial piston pump is commonly applied to hydraulic transmission systems, particularly for high-power transmissions. It can be seen in construction machinery, agricultural machinery and equipment, as well as in the coal mining, oil exploration, aerospace and shipbuilding industries.
Moreover, this pump comes in handy in situations requiring high pressure, large flow, and adjustable power systems. Consequently, they are often used in plane, broaching machines, and hydraulic machines as well as in other widespread applications.
Support and Services:
Axial Piston Pumps offer technical support and services to ensure that customers get the best possible experience with the product.
This support includes:
Technical advice and assistance
Replacement parts
Repair services
Factory direct sale, competitive prices.
We are factory with quick delivery.
Capability to handle high range of pressure and flow.
Long time service life & high speed.
Easy to maintenance.
Easy to install.
FAQ:
Axial Piston Pumps
Q1: What material is the Axial Piston Pump made from?
A1: The Axial Piston Pump is made from high quality, durable materials.
Q2: How many Axial Piston Pumps are supplied per month?
A2: We are able to supply up to 200 Axial Piston Pumps per month.
Q3: What is the minimum order quantity?
A3: The minimum order quantity for Axial Piston Pumps is 5 sets.
Q4: What kind of payment terms do you accept?
A4: We accept payment via T/T or Western Union.
Q5: What kind of packaging do you use for Axial Piston Pumps?
A5: We use plywood case for packaging Axial Piston Pumps.
