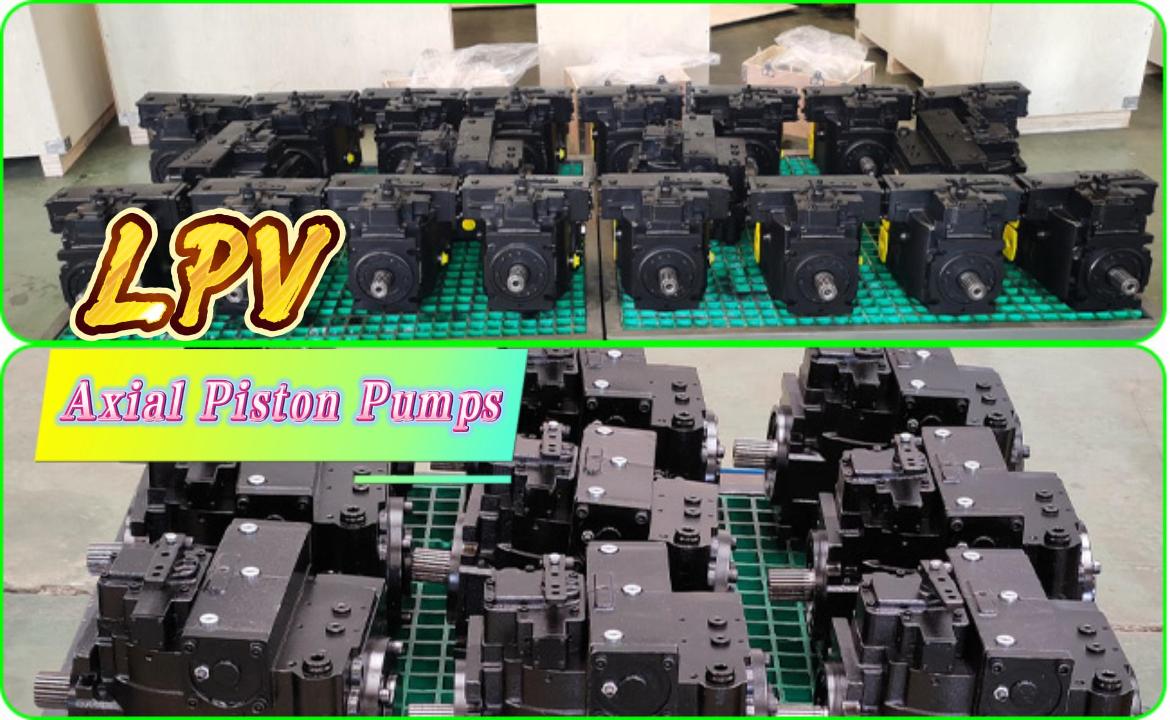

Variable Displacement Axial Piston High Pressure Hydraulic Pumps
Product Description:
We Highland specialize in providing high quality, high performance axial hydraulic pump and hydraulic motor assembly and comprehensive hydraulic system. The pump is of variable displacement, it comes with the Charge Pump, meanwhile, the motor is either quantitative or variable, as well as a valve assembly.
The control of the variable displacement pump and motor can be done by manual or electrical operated. Such operations enable simply controlling the speed, direction and power of the output shaft of the hydraulic motor.
Our hydraulic pump has variable displacement and medium pressure axial piston pumps for closed circuit mobile systems. Our piston pumps provide a really efficient, compact and quiet performance with a maximum operating pressure of up to 42Mpa.
Features:
Axial piston pumps are an ideal choice for optimizing performance, efficiency and profit for many types of applications. Highland hydraulic makes hydraulic pumps that operate at a maximized efficiency and offer low total costs.
The hydraulic pumps come in a compact design that is both lightweight and simple to operate. The quality and performance is precise and reliable, and the range of hydraulic pumps offers between 30-130 cm² per round.
The pressure capability of the hydraulic pumps is also impressive with a working pressure of 420 bar transient pressure.
Technical Parameters:
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | LPV series hydraulic pump
hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
LMF series hydraulic motor
hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
The Various Applications of Axial Piston Pump
Axial piston pumps are widely used in hydrostatic transmission systems, and are especially common in high-pressure and high power hydraulic transmission systems. This makes them a perfect fit for many industries, ranging from construction machinery, agricultural machinery, coal mining, oil exploration, aerospace, and ship building.
Moreover, they are well-suited for use in power systems where huge flows and flow adjustments are required. Typical applications of axial piston pumps include planers, broaching machines, hydraulic machines, and construction machinery.
Support and Services:
Axial Piston Pumps Technical Support and Service
We provide technical support and service for our axial piston pumps. Our team of experienced technicians and engineers can help you identify and solve any problems you may have with your pump. Our team can help you troubleshoot, diagnose, and repair any issue you may have with your pump. We also provide regular maintenance and preventive services to ensure your pump runs smoothly and efficiently.
If you have any questions or need assistance, please do not hesitate to contact us. We are happy to help you in any way we can.
FAQ:
Q: What is the brand name of Axial Piston Pumps?
A: The brand name of Axial Piston Pumps is HIGHLAND.
Q: What is the model number of Axial Piston Pumps?
A: The model number of Axial Piston Pumps is LPV110.
Q: Where is Axial Piston Pumps manufactured?
A: Axial Piston Pumps is manufactured in Dezhou, China.
Q: What is the minimum order quantity for Axial Piston Pumps?
A: The minimum order quantity for Axial Piston Pumps is 5 sets.
Q: What is the price of Axial Piston Pumps?
A: The price of Axial Piston Pumps is negotiable.
