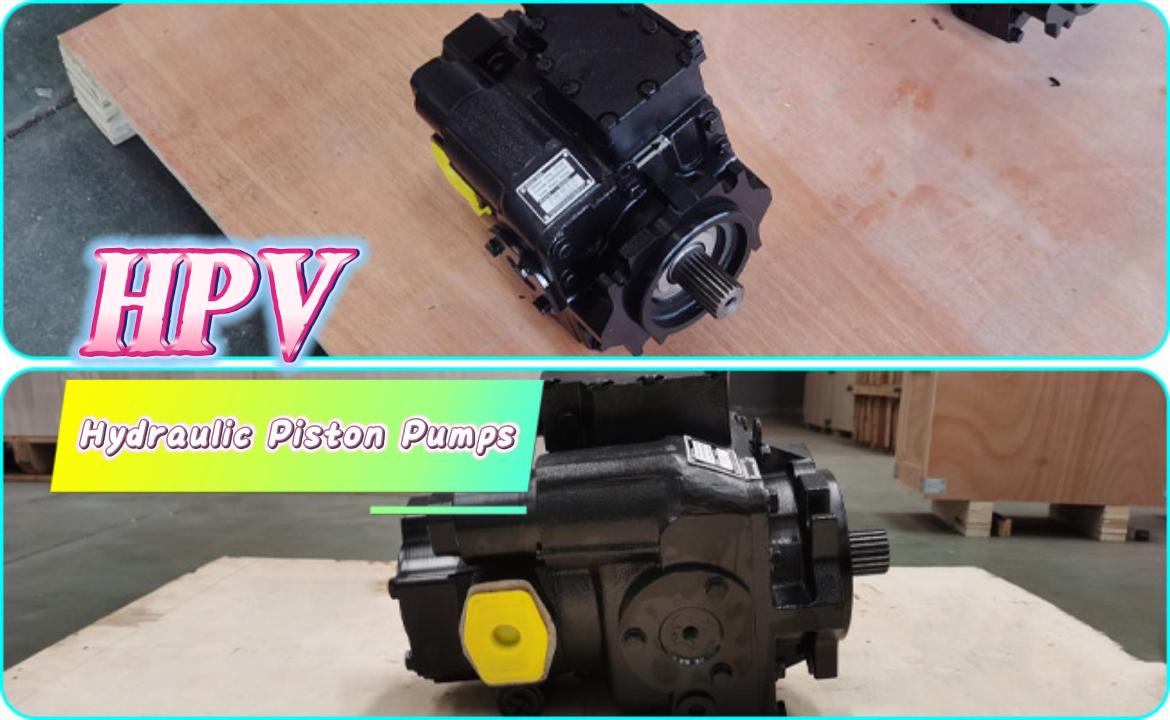

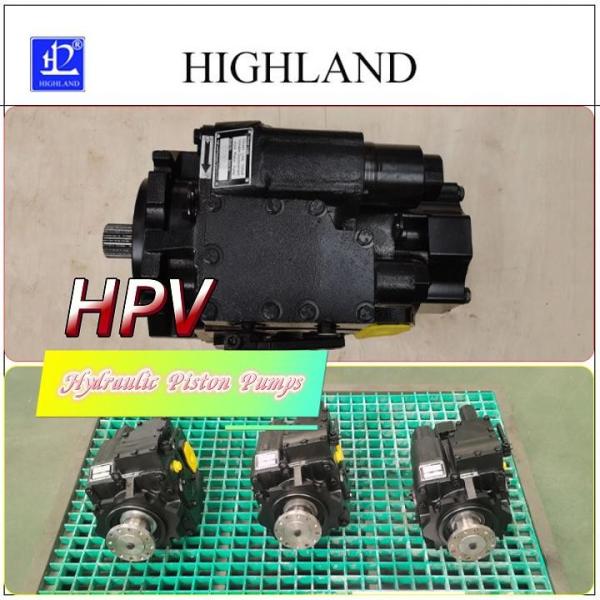

High Precision Hydraulic Axial Piston Pump HPV110 for Farming Equipment
Hydraulic axial variable displacement piston pumps basic information and selection:
he hydraulic axial variable displacement piston pump is the heart of any agricultural machinery's hydraulic system, responsible for delivering oil at precise flow rates and pressures. This component holds the key to system efficiency, noise reduction, enhanced agricultural performance, and reliable operation. The selection process follows a logical sequence: start by calculating the required displacement of the hydraulic pump, taking into consideration the operational conditions of the farming equipment, power output, and performance criteria. Then, proceed to match the pump's specifications and models to the specific pressure and flow requirements of the agricultural system, ensuring optimal performance.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic axial piston pumps usage:
Hydraulic axial piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, tractor and combine harvester, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
Notices:
Accurately control the pressure within the hydraulic system. Use pressure relief valves to prevent overpressurization, which can cause catastrophic failure of the pump and other components. Regularly calibrate and inspect pressure control devices to ensure their accuracy.
Maintain a consistent operating temperature within the hydraulic system. Use cooling systems such as heat exchangers or coolers when necessary to prevent the fluid from overheating. Excessively high temperatures can lead to fluid breakdown, reduced pump efficiency, and even damage to seals and components.
FAQ of hydraulic axial piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston pumps, 20 years experiences in hydraulic industry for oversea and domestic markets. Welcome to visit our factory in Dezhou city Shandong province.
