Product Description:

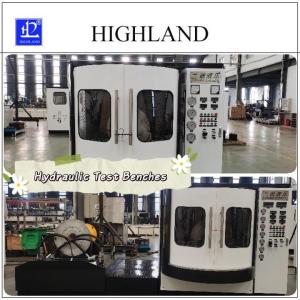

HIGHLAND's Hydraulic Test Benches offer a reliable and cost-effective solution for testing hydraulic pumps and motors. Our Hydraulic Test Benches are designed specifically for testing hydraulic components, providing reliable testing operation with a maximum pressure of 42 Mpa. The YST450 Hydraulic Test Bench is a fully automatic device which can be used to measure and test hydraulic components under various conditions. It features a wide range of tests including pressure, flow, leakage, temperature, and other parameters. This testing equipment is reliable and accurate, offering a comprehensive testing solution for hydraulic components. It is designed with safety features to ensure that testing operation is carried out in a safe and secure manner.
Our Hydraulic Test Benches provide a complete solution for testing hydraulic components. It is built with advanced technology to ensure accuracy and reliability. It is designed with precision components to ensure the highest level of performance. The testing results are easy to read and understand. The device is also easy to operate and maintain, making it a great choice for any testing application. It is a reliable and cost-effective solution for testing hydraulic components.
Features:
- Product Name: Hydraulic Test Benches
- Usage: Rotary Drilling Rig
- Specification parameters: YST450 Hydraulic Test Bench
- Advantage: High Oil Filtration Accuracy
- Brand: HIGHLAND
- Function: Testing Hydraulic Pumps And Motors
- Customized Hydraulic Test Bench: YST450 Hydraulic Test Bench
- Customized Hydraulic Test Bench for Rotary Drilling Rig: YST450 Hydraulic Test Bench
Technical Parameters:
| Pressure(mpa) | 35mpa/42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic motor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Applications:
HIGHLAND YST450 hydraulic test benches are customized hydraulic equipment testing systems manufactured by a professional hydraulic test machine factory in China Dezhou. It is designed for testing hydraulic pumps and motors, with a power of 160Kw and a flow rate of 450L/min. This reliable hydraulic test bench is CE certified and requires a minimum order quantity of 1set. The price ranges from USD28000-120000/set and comes with plastic film packaging for delivery. The delivery time is approximately 30-60 working days, and payment can be made via T/T or Western Union. The supply ability is 5 sets per month. This hydraulic test bench is perfect for testing rotary drilling rigs and other hydraulic equipment. With its accurate and reliable results, it is trusted by many customers.
Customization:
We offer various customization services for our hydraulic test benches, which are made by HIGHLAND. The model number of our machine is YST450. Our machine is CE certified and made in China Dezhou. The minimum order quantity is 1 set, and the price range is from USD 28000 to 120000 per set. The packaging details are plastic film packaging and the delivery time is 30-60 working days. The payment terms are T/T, Western Union and the supply ability is 5 sets per month. The pressure of our machine is 42 Mpa and the flow rate is 450 L/min. The power of the machine is 160 Kw and the function of the machine is to test hydraulic pumps and motors.
Our hydraulic test benches are the best choice for hydraulic test machine factories and fully automatic hydraulic test bench applications. We offer comprehensive customization services for our hydraulic test machines and can provide tailored solutions to meet special requirements.
Packing and Shipping:
Each Hydraulic Test Bench is carefully packaged in plastic film to ensure safe transit. A label will be added to the machine that will include the product name, the model number, and the serial number. The machine will be sealed and ready for shipping.
Our shipping team will use a reliable courier service to deliver the Hydraulic Test Bench safely to the customer's address.
