Precision and Adaptability Hydraulic Piston Pumps for Agriculture
Hydraulic axial variable displacement piston pumps basic information and selection:
Experience the revolution in agricultural machinery with our adaptive Hydraulic Axial Variable Displacement Piston Pumps. These pumps are the epitome of technological advancement, offering the flexibility to precisely control the flow and pressure of oil. This adaptability ensures optimal performance across various farming operations, from tilling the land to precision planting. With our piston pumps, you're investing in efficiency, reducing operational costs, and significantly improving the reliability of your agricultural equipment.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic axial piston pumps usage:
Hydraulic axial piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, tractor and combine harvester, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
Notices:
Proactive leak detection in hydraulic piston pump systems is essential for operational integrity and environmental safety. Leaks can lead to reduced system pressure, compromised efficiency, and potential environmental hazards. Regular inspections and employing advanced leak detection technologies can help identify and rectify leaks early, ensuring the safe and efficient operation of your machinery in sectors like agriculture, mining, and beyond.
FAQ of hydraulic axial piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston pumps, 20 years experiences in hydraulic industry for oversea and domestic markets. Welcome to visit our factory in Dezhou city Shandong province.
Whatsapp/wechat/phone:+86 18678785446
E-mail:ld@hldhydraulic.com
QQ:545353883
Tags: hydraulic axial piston pumps, high pressure hydraulic piston pumps, hydraulic axial piston pumps
|
|

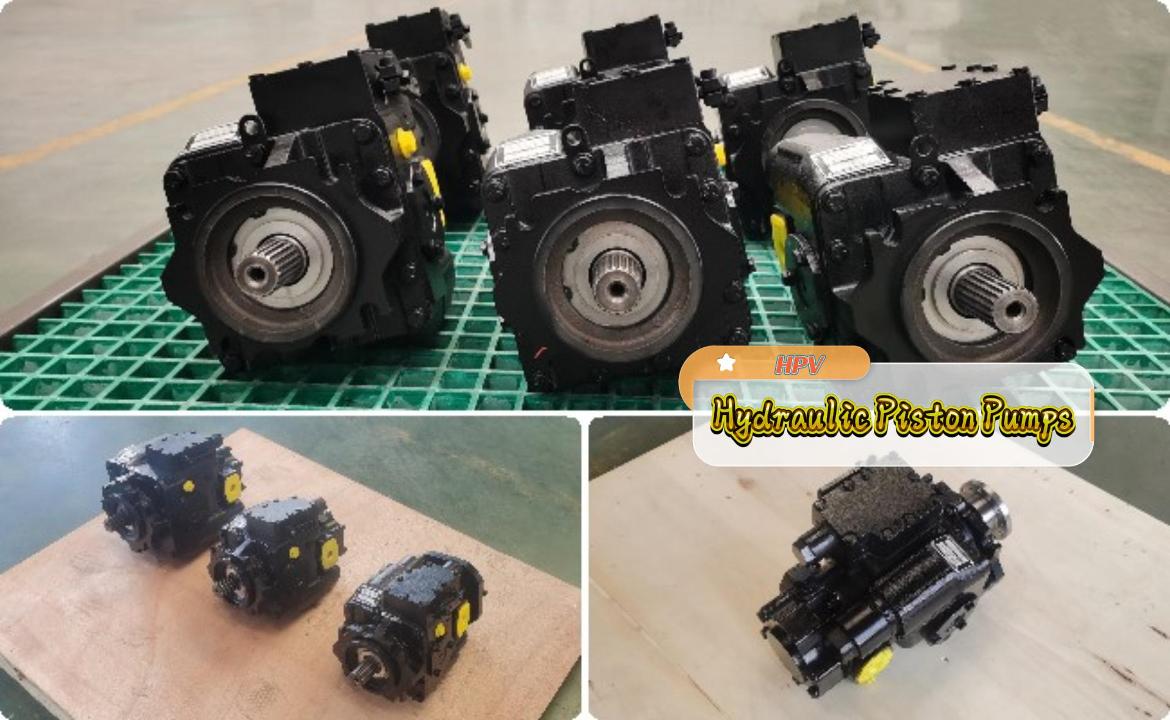

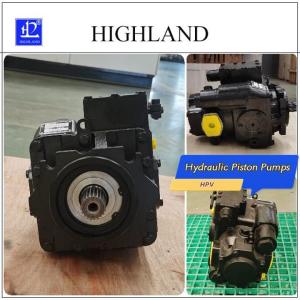

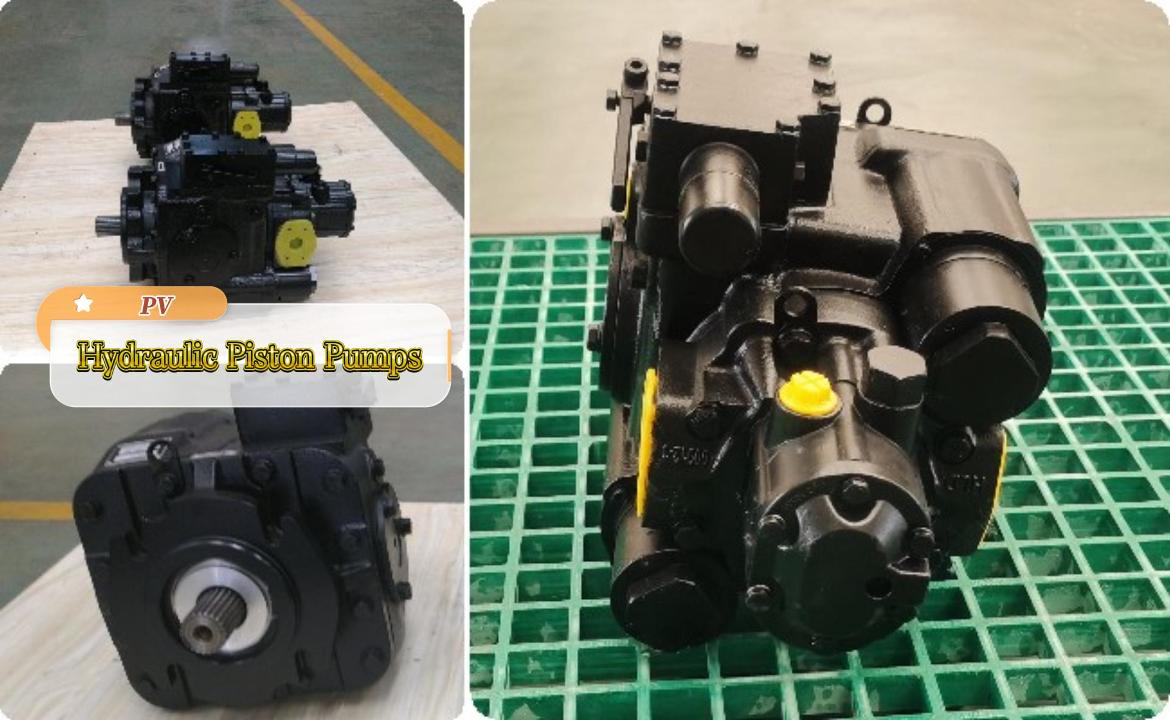

Precision and Adaptability Hydraulic Piston Pumps for Agriculture Images
|
