Hydraulic Transmission Principle Hydraulic Piston Pumps for Hydraulic System Components
Product Description:

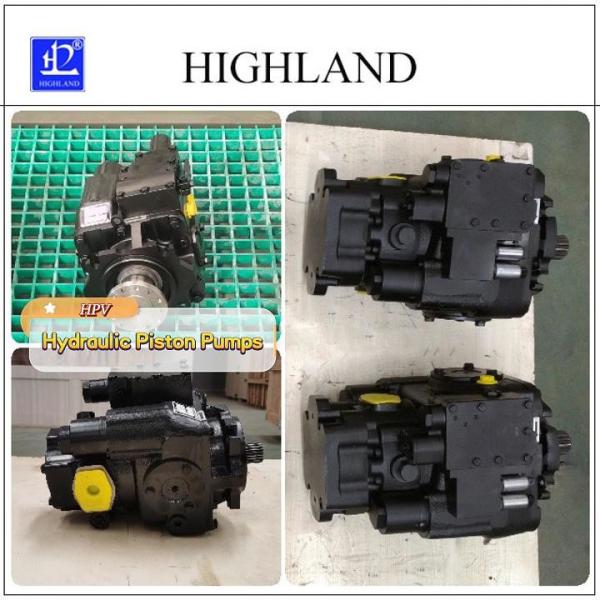

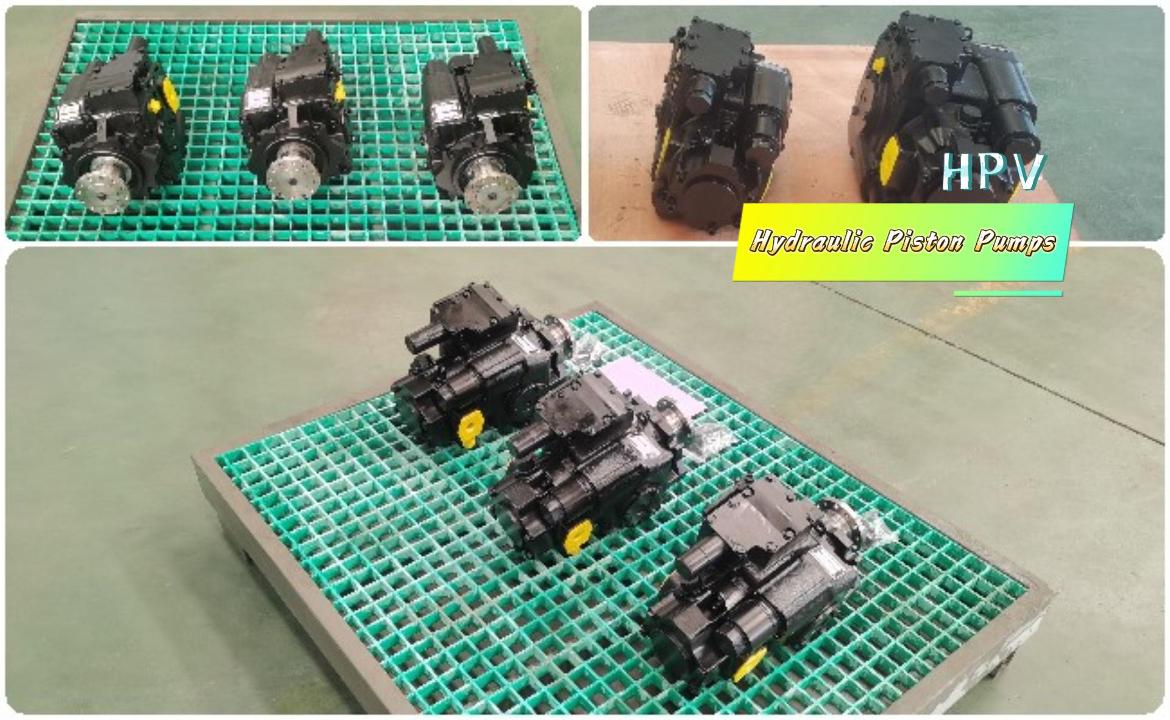

Product Overview: Hydraulic Piston Pumps
Hydraulic Piston Pumps are high pressure pumps designed to deliver efficient and reliable performance in a variety of applications. With a rated pressure of 35Mpa, these pumps are perfect for heavy-duty tasks in the construction and agricultural industries.
The structure of these pumps is a variable displacement axial piston pump, which allows for a smooth and precise flow of hydraulic fluid. This results in improved control and accuracy in the operation of construction machinery, agricultural harvesters, and tractors.
As a type of hydraulic piston pump, our product is known for its durability, high efficiency, and excellent performance. It is built to withstand harsh working conditions and deliver consistent results, making it a popular choice among industries.
Our Hydraulic Piston Pumps are available for sale, catering to the needs of various industries. With its high pressure capabilities and variable displacement feature, it is suitable for a wide range of applications, providing superior performance and reliability.
To ensure the safe delivery of our product, we use standard export packaging - a sturdy plywood case. This guarantees that the pump remains in optimal condition during transportation, reducing the risk of any damage.
In summary, our Hydraulic Piston Pumps are high pressure pumps, with a variable displacement axial piston structure, suitable for construction machinery, agricultural harvesters, and tractors. With its superior performance, durability, and reliability, it is a top choice for industries looking for a high-quality piston pump for their operations.
Features:
- Product Name: Hydraulic Piston Pumps
- Structure: Variable Displacement Axial Piston Pump
- Type: Hydraulic Piston Pump
- Standard Export Package: Plywood Case
- Package: Plywood Case
- Function: Hydraulic System Components
- Key Features:
- High pressure piston pump
- Hydraulic piston pump
- Hydraulic piston pump price
Technical Parameters:
| Product Name | Hydraulic Piston Pumps |
| Color | Black |
| Function | Hydraulic System Components |
| Principle | Hydraulic Transmission |
| Rated Pressure | 35Mpa |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Pressure Range | High Pressure |
| Standard Export Package | Plywood Case |
| Type | Hydraulic Piston Pump |
| Warranty | 1 Year |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
Hydraulic piston pumps usage:
a. Piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
b. Piston pumps are used in petroleum exploration and development, petrochemical, pharmaceutical, atomic energy science, environmental science, process equipment, experimental equipment, etc.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is HIGHLAND. - Q: What is the model number of this product?
A: The model number of this product is HPV90. - Q: Where is this product manufactured?
A: This product is manufactured in CHINA DEZHOU. - Q: Does this product have any certification?
A: Yes, this product has a PATENT CERTIFICATE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5 sets. - Q: What is the price range for this product?
A: The price range for this product is USD900-1400 per set. - Q: How is this product packaged?
A: This product is packaged in plywood cases. - Q: What is the estimated delivery time for this product?
A: The estimated delivery time for this product is 10 working days. - Q: What payment methods are accepted for this product?
A: We accept T/T and Western Union for payment. - Q: What is the supply capacity for this product?
A: The supply capacity for this product is 200 sets per month.
Tags: hydraulic system components, hydraulic transmission, hydraulic piston pump
