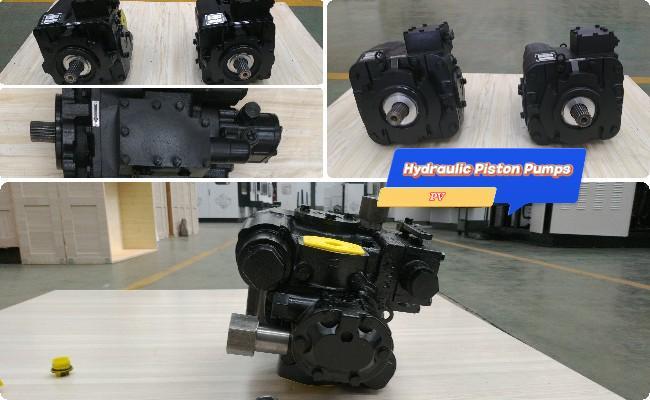

Maximize Mining Efficiency with Our High-Performance Hydraulic Piston Pumps
Hydraulic axial variable displacement piston pumps basic information and selection:
Elevate your aerospace operations with our high-performance Hydraulic Piston Pumps. Designed for the stringent requirements of aerospace applications, these pumps deliver unmatched precision and reliability. Essential for flight control systems, landing gear, and other critical components, our pumps ensure optimal performance and safety. With our Hydraulic Piston Pumps, you can achieve new heights in aerospace technology, driving forward innovation and excellence in the skies.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic axial piston pumps usage:
Establish a proactive maintenance program for your hydraulic piston pumps to prevent unplanned downtime. This includes scheduling regular inspections, cleaning, and replacing parts before they fail. A proactive approach ensures your pumps run efficiently, minimizes costly repairs, and extends the overall life of your equipment, enhancing productivity and operational efficiency.
Notices:
In marine applications, maintaining the integrity of hydraulic fluid is crucial to the functionality of hydraulic piston motors. The presence of saltwater, dirt, and other contaminants can severely impact motor performance and durability. Regular fluid monitoring and employing advanced filtration systems can help mitigate these risks, ensuring your marine equipment remains operational and reliable, even in the most challenging conditions.
FAQ of hydraulic axial piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston pumps, 20 years experiences in hydraulic industry for oversea and domestic markets. Welcome to visit our factory in Dezhou city Shandong province.
