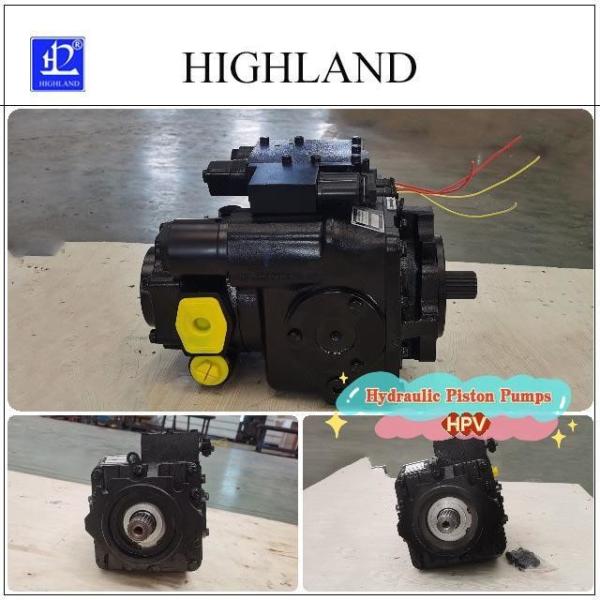

Cast Iron Hydraulic Piston Pump High Pressure Variable Displacement Axial Structure
Product Description:
Our hydraulic piston pump is an essential component of any hydraulic system, providing the power and pressure needed to operate a wide range of industrial equipment and machinery. With its variable displacement design, this piston pump for sale can easily adjust to meet the specific needs of your application, ensuring maximum efficiency and effectiveness at all times.
Whether you're looking for a reliable replacement for an existing hydraulic piston pump or need a new hydraulic pump for a brand-new hydraulic system, our Variable Displacement Axial Piston Pump is the perfect choice. Built to last and designed to deliver top-notch performance, this hydraulic piston pump is an investment in the future of your business.
Features:
- Product Name: Hydraulic Piston Pumps
- Color: Black
- Warranty: 1 Year
- Function: Hydraulic System Components
- Pressure Range: High Pressure
- Keywords: piston pump for sale, HPV110 hydraulic pump, High quality hydraulic pump
Technical Parameters:
| Principle | Hydraulic Transmission |
| Color | Black |
| Package | Plywood Case |
| Function | Hydraulic System Components |
| Structure | Variable Displacement Axial Piston Pump |
| Power Source | Hydraulic |
| Max Pressure | 42Mpa |
| Warranty | 1 Year |
| Material | Cast Iron |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
Support and Services:
The Hydraulic Piston Pumps product is designed to deliver high performance and reliability in a variety of applications. Our technical support and services team is dedicated to helping customers get the most out of their purchase.
We offer a range of services, including:
- Installation and commissioning
- Maintenance and repair
- Technical support and troubleshooting
- Training and education
- Customization and engineering support
Our team of experts is available to provide assistance and support throughout the entire lifecycle of your Hydraulic Piston Pump. Whether you need help selecting the right product, installing and commissioning, or troubleshooting any issues, we are here to help.
FAQ:
Q: What is the brand name of the hydraulic piston pump?
A: The brand name of the hydraulic piston pump is HIGHLAND.
Q: What is the model number of the hydraulic piston pump?
A: The model number of the hydraulic piston pump is HPV110.
Q: Where is the hydraulic piston pump manufactured?
A: The hydraulic piston pump is manufactured in CHINA DEZHOU.
Q: Is the hydraulic piston pump certified?
A: Yes, the hydraulic piston pump has a PATENT CERTIFICATE.
Q: What are the payment terms for purchasing the hydraulic piston pump?
A: The payment terms for purchasing the hydraulic piston pump are T/T and Western Union.
Q: What is the minimum order quantity for the hydraulic piston pump?
A: The minimum order quantity for the hydraulic piston pump is 5 sets.
Q: What is the price range for the hydraulic piston pump?
A: The price range for the hydraulic piston pump is USD900-1400 per set.
Q: What are the packaging details for the hydraulic piston pump?
A: The hydraulic piston pump is packaged in a plywood case.
Q: What is the delivery time for the hydraulic piston pump?
A: The delivery time for the hydraulic piston pump is 10 working days.
Q: What is the supply ability of the hydraulic piston pump?
A: The supply ability of the hydraulic piston pump is 200 sets per month.
Tags: variable displacement axial piston pump, hydraulic piston pump high pressure, construction machinery hydraulic pump
