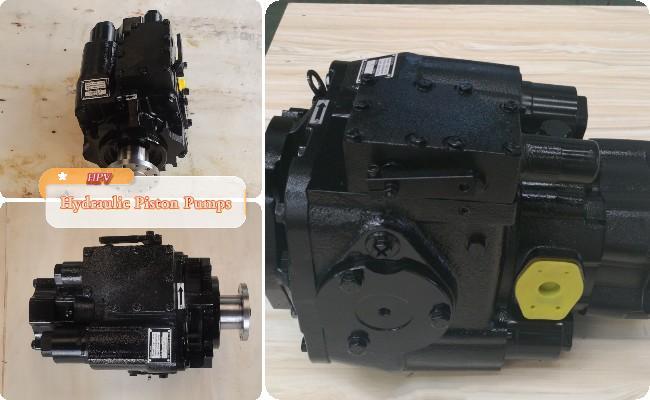

Black Max Pressure 42Mpa Hydraulic Transmission Hydraulic Piston Pump
Product Description:
Not only does the HPV110 hydraulic pump feature a top-of-the-line structure, but it also runs on hydraulic power, providing a strong and consistent flow for your system. And with its standard export package of a durable plywood case, you can rest assured that our hydraulic pump will arrive in top condition.
As one of our premier hydraulic system components, the HPV110 hydraulic pump is designed to meet the highest standards of quality and reliability. Whether you need it for heavy duty industrial applications or for everyday use, this hydraulic pump is built to last.
So why wait? Invest in the best with our HPV110 hydraulic pump. Order yours today and experience the power and performance of a top-of-the-line hydraulic pump.
Features:
- Product Name: Hydraulic Piston Pumps
- Material: Cast Iron
- Structure: Variable Displacement Axial Piston Pump
- Max Pressure: 42Mpa
- Pressure Range: High Pressure
- Principle: Hydraulic Transmission
This hydraulic piston pump is perfect for those looking for a high pressure solution. Its cast iron material and variable displacement axial piston pump structure make it durable and efficient. With a max pressure of 42Mpa, this piston pump for sale is ideal for hydraulic transmission applications.
Technical Parameters:
| Product Name | Hydraulic Piston Pumps |
| Structure | Variable Displacement Axial Piston Pump |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Max Pressure | 42Mpa |
| Rated Pressure | 35Mpa |
| Pressure Range | High Pressure |
| Material | Cast Iron |
| Color | Black |
| Package | Plywood Case |
| Warranty | 1 Year |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
The HIGHLAND HPV110 hydraulic piston pump is suitable for a wide range of product application occasions and scenarios. It is commonly used in construction machinery, such as excavators, bulldozers, loaders, and cranes, to power the hydraulic system. It is also used in agricultural machinery, such as tractors and harvesters, to drive the hydraulic system. Additionally, it can be used in metallurgical machinery, mining machinery, and other heavy-duty machinery.
If you are looking for a hydraulic piston pump for sale, the HIGHLAND HPV110 is an excellent choice. It comes with a patent certificate and a 1-year warranty, ensuring its quality and durability. The minimum order quantity is 5 sets, and the price ranges from USD900-1400 per set, depending on the order volume. The packaging details include a sturdy plywood case to ensure safe transportation.
The HIGHLAND HPV110 hydraulic piston pump has a supply ability of 200 sets per month, with a delivery time of 10 working days. The payment terms include T/T and Western Union, making it easy to complete the transaction.
In summary, the HIGHLAND HPV110 hydraulic piston pump is a versatile and reliable power source that can be used in various industries. Its patent certificate, 1-year warranty, and sturdy packaging make it a trusted product. If you need a hydraulic piston pump for sale, consider the HIGHLAND HPV110.
Support and Services:
Our Hydraulic Piston Pumps are built to provide reliable and efficient performance in a wide range of applications. Our technical support team is available to assist with any questions or issues you may encounter with your pump. We offer a range of services, including:
- Installation assistance and guidance
- Maintenance tips and recommendations
- Repair and replacement parts
- Diagnostics and troubleshooting
- Training and education on pump operation and maintenance
Our goal is to ensure that your Hydraulic Piston Pump operates at peak performance and provides you with the results you need. Contact us for more information on our technical support and services.
FAQ:
Q: What is the brand name of the Hydraulic Piston Pump?
A: The brand name of the Hydraulic Piston Pump is HIGHLAND.
Q: What is the model number of the Hydraulic Piston Pump?
A: The model number of the Hydraulic Piston Pump is HPV110.
Q: Where is the Hydraulic Piston Pump manufactured?
A: The Hydraulic Piston Pump is manufactured in CHINA DEZHOU.
Q: Does the Hydraulic Piston Pump have any certification?
A: Yes, the Hydraulic Piston Pump has a PATENT CERTIFICATE.
Q: What is the minimum order quantity for the Hydraulic Piston Pump?
A: The minimum order quantity for the Hydraulic Piston Pump is 5 sets.
Q: What is the price range of the Hydraulic Piston Pump?
A: The price range of the Hydraulic Piston Pump is USD900-1400 per set.
Q: What are the packaging details for the Hydraulic Piston Pump?
A: The Hydraulic Piston Pump is packaged in a Plywood Case.
Q: How long does it take to deliver the Hydraulic Piston Pump?
A: The delivery time for the Hydraulic Piston Pump is 10 working days.
Q: What are the payment terms for the Hydraulic Piston Pump?
A: The payment terms for the Hydraulic Piston Pump are T/T and Western Union.
Q: What is the supply ability of the Hydraulic Piston Pump?
A: The supply ability of the Hydraulic Piston Pump is 200 sets per month.
Tags: hydraulic system components, HPV110 hydraulic pump, piston pump for sale
