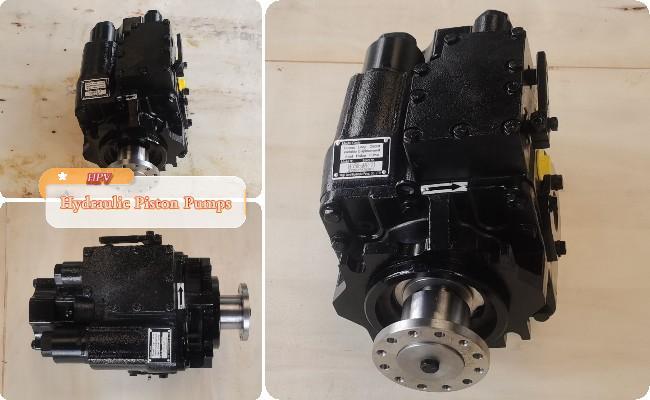

High Pressure 42Mpa Cast Iron Black Hydraulic Piston Pump Closed Loop System
Product Description:
Our Hydraulic Piston Pumps are powered by hydraulic technology, making them ideal for use in a range of industries, including construction, mining, and agriculture. Whether you're looking for a powerful HPV110 hydraulic piston pump or other models, we have a wide selection to choose from to meet your specific needs.
In addition to their reliable performance, our Hydraulic Piston Pumps are also designed with ease of use in mind. They come in a standard export package of plywood case, which provides added protection during shipping and storage. Plus, their sleek black color adds a touch of professionalism to any workplace.
So why choose our Hydraulic Piston Pumps for your industrial needs? Not only do they offer high pressure and superior performance, but they also come with a durable and reliable structure that ensures long-lasting operation. And with their easy-to-use design and standard export package, they're a convenient and practical choice for any workplace.
Features:
- Product Name: Hydraulic Piston Pumps
- Power Source: Hydraulic
- Function: Hydraulic System Components
- Color: Black
- Material: Cast Iron
- Type: Hydraulic Piston Pump
- Features:
- HPV110 hydraulic pump
- Hydraulic piston pump
- High pressure piston pump
Technical Parameters:
| Product Name | Hydraulic Piston Pumps |
| Type | Hydraulic Piston Pump |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Principle | Hydraulic Transmission |
| Max Pressure | 42Mpa |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| Color | Black |
| Standard Export Package | Plywood Case |
| Warranty | 1 Year |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
One of the main applications of the HPV110 is in construction machinery. It can be used in excavators, loaders, and other heavy equipment to power hydraulic systems. The hydraulic piston pump is also suitable for use in agricultural machinery such as harvesters and tractors, where it can help to power hydraulic systems that control implements and other functions.
The HPV110 is manufactured in China Dezhou and has a patent certificate, ensuring that it is of high quality and built to last. It is available for purchase in quantities of 5 sets or more, with a price range of USD900-1400 per set. The product is packaged in sturdy plywood cases and can be delivered within 10 working days of ordering.
Payment terms for the HPV110 hydraulic piston pump include T/T and Western Union, making it easy for customers to purchase the product. The supply ability of the product is 200 sets per month, ensuring that there is enough stock to meet demand.
Overall, the HIGHLAND HPV110 hydraulic piston pump is a versatile and reliable product that can be used in a variety of applications. Its high-pressure piston pump capabilities make it ideal for use in hydraulic systems, while its sturdy construction and patent certificate ensure that it is built to last. Whether you are in construction or agriculture, this hydraulic pressure hydraulic piston pump is a must-have for any hydraulic system.
Support and Services:
Our Hydraulic Piston Pumps are designed to provide reliable and efficient performance in a variety of industrial applications. We offer a range of technical support and services to ensure that our customers get the most out of their pumps:
- Installation and commissioning services
- On-site troubleshooting and repair
- Remote technical support
- Training for maintenance personnel and operators
- Customized maintenance and service contracts
- Original spare parts and accessories
Our team of experienced engineers and technicians is dedicated to providing prompt and effective support to minimize downtime and maximize productivity. Contact us for more information on our technical support and services.
FAQ:
FAQs for HIGHLAND Hydraulic Piston Pumps (Model: HPV110):
Q: What is the place of origin for HIGHLAND Hydraulic Piston Pumps?
A: HIGHLAND Hydraulic Piston Pumps are made in China Dezhou.
Q: What is the minimum order quantity for HIGHLAND Hydraulic Piston Pumps?
A: The minimum order quantity for HIGHLAND Hydraulic Piston Pumps is 5 sets.
Q: Is HIGHLAND Hydraulic Piston Pumps certified?
A: Yes, HIGHLAND Hydraulic Piston Pumps are certified with a Patent Certificate.
Q: What are the payment terms for HIGHLAND Hydraulic Piston Pumps?
A: The payment terms for HIGHLAND Hydraulic Piston Pumps are T/T and Western Union.
Q: What is the delivery time for HIGHLAND Hydraulic Piston Pumps?
A: The delivery time for HIGHLAND Hydraulic Piston Pumps is 10 working days.
Q: What is the supply ability for HIGHLAND Hydraulic Piston Pumps?
A: The supply ability for HIGHLAND Hydraulic Piston Pumps is 200 sets per month.
Q: What is the price range for HIGHLAND Hydraulic Piston Pumps?
A: The price range for HIGHLAND Hydraulic Piston Pumps is between USD900-1400 per set.
Q: What is the packaging detail for HIGHLAND Hydraulic Piston Pumps?
A: The packaging detail for HIGHLAND Hydraulic Piston Pumps is a plywood case.
Tags: HPV110 hydraulic piston pump, Closed loop system, High pressure hydraulic piston pump
