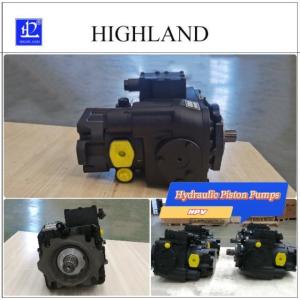

Upgrade Your Mining Operations with Advanced Hydraulic Piston Pumps
Hydraulic axial variable displacement piston pumps basic information and selection:
Our Hydraulic Piston Pumps are the ultimate solution for demanding underground mining environments. Built to withstand tough conditions, these pumps offer reliable, high-powered performance, ensuring your equipment operates at peak efficiency. Experience reduced downtime and enhanced productivity with our robust and efficient hydraulic pumps, specifically designed to meet the challenges of mining operations.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil emptying | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil emptying | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Hydraulic axial piston pumps usage:
Hydraulic axial piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, tractor and combine harvester, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
Notices:
Implementing a vibration monitoring system can help detect early signs of hydraulic piston pump issues. Excessive vibration can indicate potential problems such as misalignment, imbalance, or worn bearings. By regularly monitoring vibration levels, you can address issues promptly, preventing significant damage and ensuring smooth, efficient operation of your pumps.
FAQ of hydraulic axial piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston pumps, 20 years experiences in hydraulic industry for oversea and domestic markets. Welcome to visit our factory in Dezhou city Shandong province.
Whatsapp/wechat/phone:+86 18678785446
E-mail:ld@hldhydraulic.com
QQ:545353883
